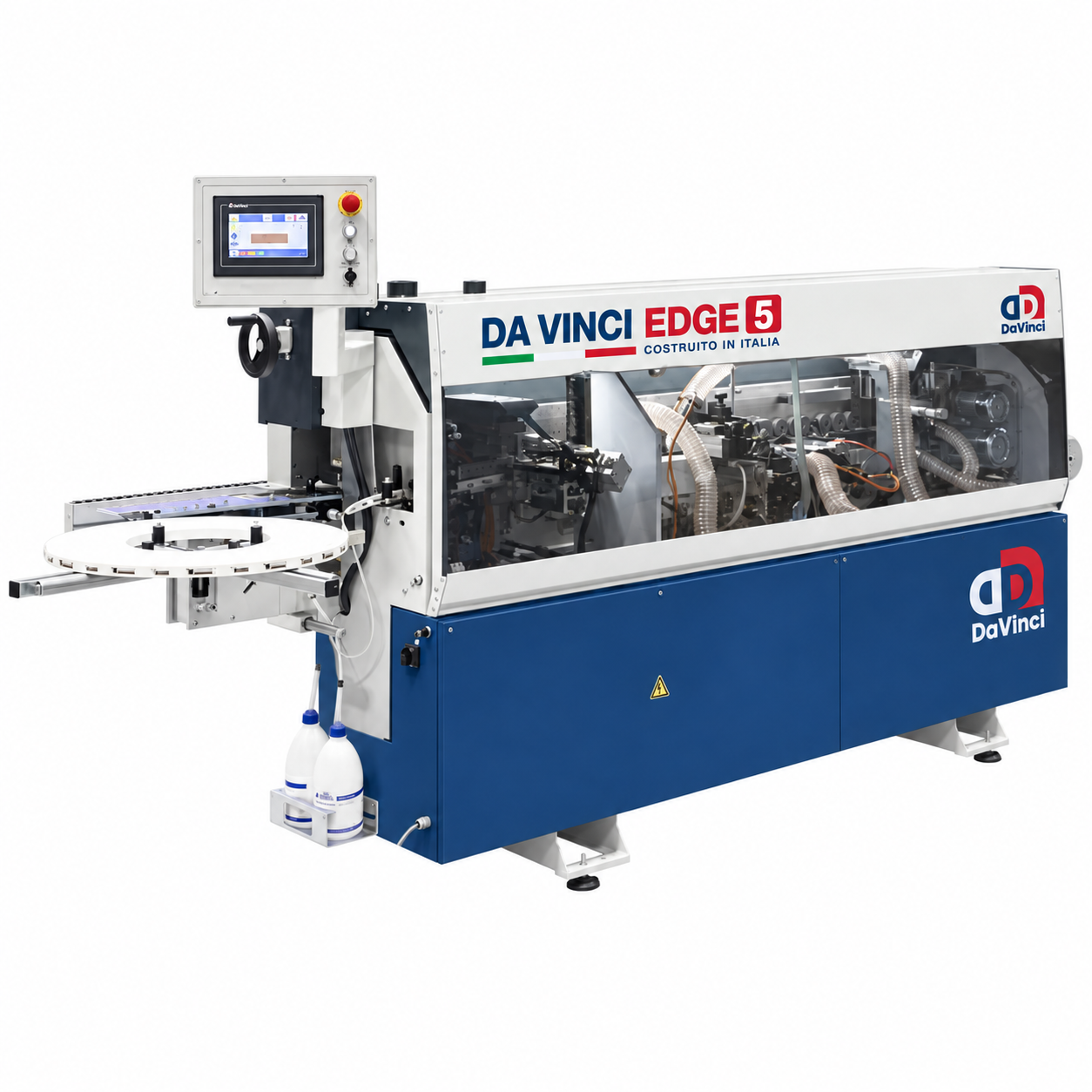

DAVINCI EDGE 5
Automatic edge bander with hybrid upper hot melt, EVA/PUR poliurethanic (standard) chain panel feeding, pre milling and corner rounding unitsBASIC MACHINE FEATURES
The first and only figurative control with inmediate understanding on the market.
It is fitted with a figurative interface for programming and diagniostics.
Productivity control in any moment.
User friendly from the first use.
PLC and ENCODER controlled logic functioning
Complete with:
– Thermostatic glue control with automatic stand-by and glue temperature Indicator in case not using.
– Diagnostic system with messages for machine use and maintenance
– Statistical operating data: total hours of machine use, total and partial meters of edge used
• Chain panel feeder with rubber pads mounted on a steel chain with lubrication system
• Top pressure bar with a double row of rubber wheels mounted on bearings, height can be adjusted by means
of a handwheel fitted with a metric position dial.
• Pre milling group with diamond cutterblocks and two (HF) high frequency motors with Independent movement
• Feeding fence with micrometric adjustment
Variable milling from 0 to 2 mm, adjustable with a knob and numerical dial.
• Edge Feeding
feeding synchrony between the panel and the edge to guarantee a perfect glueing
• Pneumatic edge – cutting shear from coil with horizontal oscillatory movement.
• Teflon-coated glue pot allows complete and fast cleaning.
Fitted with 6 electrical heating elements (4 in the glue pot, 1 in the turret and 1 inside the glue spreading roller).
• Gluing unit with standard EVA/PUR upper glue pot
– With the latest generation of PUR glues, it is possible to stop the machine for several days (up to 4) without
having to perform any cleaning operation
– Manual granule loading (tank capacity 1.4 kg)
– Automatic setting by PLC of temperature parameters depending on the glue used
– Automatic glue spreader roller cleaning cycle
– Rapid glue unloading cycle
– Optional glue roller rotation inversion device for special processes
– Teflon coated glue pot to allow a quick and complete cleaning.
– Quick cleaning or glue change approx. 15 min.
– Quick release device for quick and easy replacement of the glue pot
– Possibility to replace the second glue pot with:
• EVA/PUR upper glue pot
• EVA lower glue pot
• No. 2 FLOATING pressure rollers:
First Ø 80 mm aluminum, second rubber
• Automatic Front/Rear End Trimming unit (straight cut) with copiers and integrated chipping collection
Possibility of independent front/rear cut selection from PLC.
HF (High Frequency) motors
End trimming unit blade 2 x Ø 100 mm
• 4 – positions flush trimming unit with 2 (HF) high – frequency motors
• Ø 75 mm cutterblocks, with Widia multi – profile knives for easy change between thin edge, thickness 1 mm,
thickness 2 mm and solid wood
Vertical and front disc copier
• Tool positioning with numerica dials
• Corner Rounder for plastic edges with Z4 Ø 50 mm DIAMOND cutter 2 mm radius profile Std.
sliding of the group with pad on linear guides
– Front copier with stainless steel ring pad
– Vertical/horizontal copier with 50 mm diameter wheel
• Front extensible support for large panels with Polizene sliding fences
