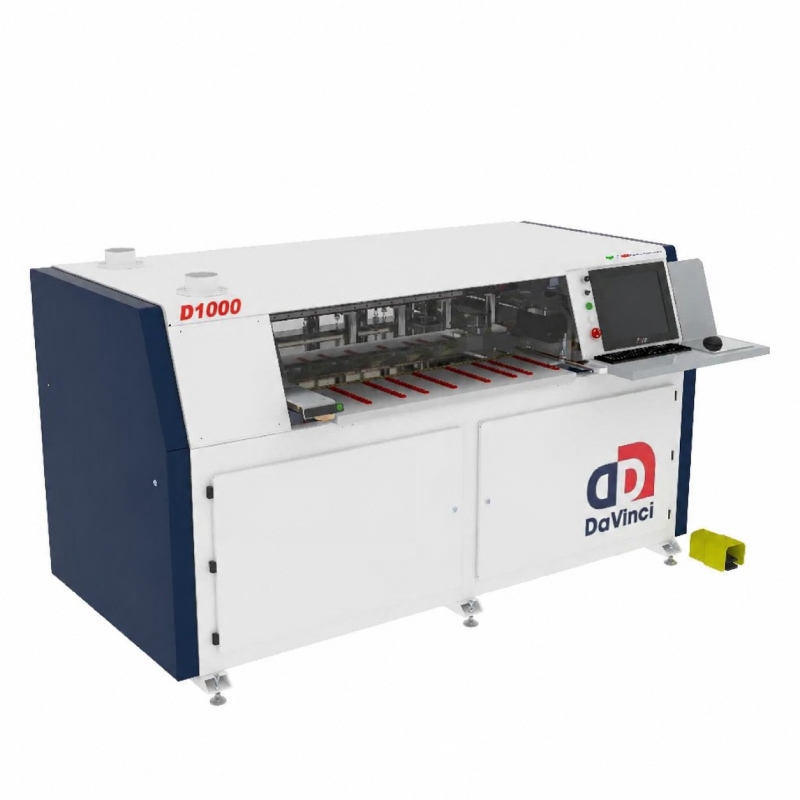

BORING SYSTEM 1000 EVO
100% MADE IN ITALYPerfect for the needs of small craftsmen looking to make a quality leap with a contained investment. Ideal for the production of custom kitchens and furniture. High precision, flexibility, and production capacity. Decades of experience, 100% Made in Italy, high standards of quality and reliability thanks to the lean manufacturing method (Toyota System).
ROUTING, GROOVING, AND RADIUING
Automatic routing allows for precise machining on flat surfaces and edges, ensuring a professional and flawless result.
Automatic corner radiuing delivers perfectly rounded panel edges, ideal for manufacturing children’s room desks with high speed and precision.
With this feature, the machine performs drilling on five sides of the panel along with grooving for assembly applications, streamlining the processing of complex components.
Precise drilling for drawer construction ensures optimal hole placement for runner systems, guaranteeing smooth sliding operation.
With this function, the machine drills hinge insertion holes, ensuring perfect fitting for doors and cabinet fronts while optimizing the assembly process.
Programmable boring machine with simple and intuitive software, 3 controlled axes X, Y, Z, with capability for grooving and executing basic routing operations (accessory), bottom-side machining, and panel feed-through. Panel movement via clamp and automatic axis lubrication. Machine manufactured according to CE standards.
HEAD UNIT with independent spindles
7 Vertical spindles
1+1 Horizontal spindles (TH1) for front/rear drilling
High-precision manual panel aligner running on recirculating ball guides
Laser panel-end reader for flawless joint alignments
Remote technical assistance software
Powerful dust extraction and automatic head unit cleaning via air blowers
Air-cushion support table (unique in its category)
Automatic axis lubrication (unique in its category)
WORK MODES selectable by operator: single side or continuous cycle
Packaging: wrapped on pallet (2630x1560x157 mm – 74 kg)
HARDWARE & SOFTWARE
– OSAI OPEN LIGHT CNC System for programming and remote connectivity
– PEGASUS PANEL design software – LIGHT VERSION
– Industrial PC, Win10 IoT Enterprise 64bit LTSC SSD 128GB MSATA, 128GB PROGRAM MEMORY on mSATA SSD, Intel Celeron J1900 CPU – 4 GB RAM
– Industrial 17” LED Monitor – IP65 front protection – 4:3 Format – 1280×1024 Resolution
Industrial 17″ LED Monitor
Protection degree (on front) IP65
Format 4:3
Resolution 1280 x 1024
USB port and Ethernet port
SPECIFICATION SHEET
| Category | Details |
|---|---|
| Max. panel dimensions X-Y-Z mm | ∞ x 1000 x 60 mm |
| Min. panel dimensions X-Y-Z mm | 300 x 75 x 8 mm |
| Max. panel weight | 70 kg |
| Max. axis speed X-Y (with and without panel) | 25 m/min – 70 m/min |
| Double horizontal spindles (X axis) | 2 pcs (TH1, TH2) |
| Double horizontal spindle (Y axis) | 2 pcs (TH3, TH4) |
| Vertical spindles (Z axis) | 12 pcs (7X-5Y) |
| Spindle center distance | 32 mm |
| Spindle rotation speed | 3200 RPM |
| Integrated fixed saw blade (X axis) | 1 pc |
| Saw blade diameter | 120 mm |
| Saw blade thickness | 4.3 mm |
| Saw blade rotation speed | 4000 RPM |
| Motor power (spindles and saw blade) | 2.2 kW |
| Manual-change electrospindle unit (power – collet type – tool coupling – RPM) | 3.6 kW, HSK 32, ER 25, 18,000 RPM |
| Manual-change electrospindle unit (power – tool coupling – RPM) | 3.6 kW, ER 25, 18,000 RPM |
| Manual-change electrospindle unit (power – tool coupling – RPM) | 4.5 kW, ER 32, 18,000 RPM |
| Total installed power (full optional) | 10 kVA |
| Dust extraction outlet diam. | 2 x 120 mm / 1 x 80 mm |
| Air pressure | 6 bar |
| Air consumption | Q = 750 m³/h |
| Overall dimensions and net weight | 2660 x 1560 x 1450 mm / 1725 kg |
| Packed machine dimensions (pallet) and gross weight | 2650 x 1570 x 1680 mm / 1810 kg |
USER-FRIENDLY SOFTWARE
Intuitive icon-based interface, step-by-step data entry, and program simulation, compliant with Industry 4.0 requirements. Creation and management of work lists, quick selection and execution of programs. Machining macros. Parametric programming. Office Creator for off-line programming. Direct import of common 3D CAD files (accessory) formats (.stp, .iges, .obj, .skp) and 2D files (.dxf, .dwg). Direct import of full projects created with cabinet software thanks to a simple decoding program (accessory). Free software updates for top performance at all times!
Configurable equipment according to needs. Max. working width 1200 mm across the entire panel. Payload capacity up to 70 kg for kitchen countertops and custom furniture. Machining with return to operator or rear panel output.
Zero setup time. 5 times faster than a single-head boring machine and the fastest in its category: 25 m/min axis speed with panel loaded (70 m/min without). All operations in a single work cycle. Horizontal layout facilitates panel loading. Fast program import with barcode reader.
Large and robust work tables provide solid support during the working cycle; Laser panel-end reader for consistently precise drillings.
Air-cushion tables make handling panels effortless while preserving their surfaces.
Stays as precise as day one thanks to the heavy-duty steel frame designed to withstand high stress. Pneumatic clamp with 70 kg load capacity. Double pressure units.
Speeds up the machining process during vertical line drilling. CODE: 27845012- EVO
Speeds up the machining process during vertical line drilling. CODE: 27845011- EVO
Additional vertical spindle Left
Speeds up the machining process during vertical line drilling
CODE: 27845011- EVO
Reduces drilling time on the 4th and 5th sides by 50%. CODE: 27845010
For executing back-panel insertion grooves. Grooving saw unit X AXIS including tool diam. 120 mm, thickness 4.3 mm, D 20 / Z 24. CODE: 27845013
Facilitates machining of long panels. Independent roller conveyor 500×1500 mm (roller table only) 562×1540 mm (overall dimensions), height-adjustable from 770 to 1,175 mm, max. load 45 kg/m – applicable to both sides of the machine. CODE: 27304100
For fast and optimal loading of panels into the machine, providing a significant boost to productivity in batch production. CODE: 27850604
For basic routing operations: light pocketing, material removal, execution of simple geometric shapes and lettering. The special HSK fitting speeds up tool changeover and setup. Electrospindle unit (router) with manual change – 3.6 kW – HSK 32 chuck holder ER 25 collet diam. 16 mm – 18,000 RPM
For basic routing operations: light pocketing, material removal, execution of simple geometric shapes and lettering. Electrospindle unit (router) with manual change – 3.6 kW – ER 25 collet diam. 16 mm – 18,000 RPM
For basic routing operations: light pocketing, material removal, execution of simple geometric shapes and lettering. Electrospindle unit (router) with manual change – 4.5 kW – ER 32 collet diam. 20 mm – 18,000 RPM. CODE: 27845755
The barcode scanner reads the code applied to the panel and instantly loads the corresponding program into the machine. CODE: 00002202
To create machining programs directly from your office or any PC, transferring them to the machine via USB drive or network cable. CODE: 00002189
Software specifications required to build a custom postprocessor, enabling the machine to import programs generated by external software (Postprocessor development provided by customer’s software vendor)
Save programming time by directly importing 3D furniture files as single items into the machine. Supports 3D formats (.stl, .stp, .iges, .obj, .skp). CODE: 000002263
Save programming time with custom macros for complex or repetitive machining operations. CODE: EVO-macro-su-RICHIESTA
Selection of essential tooling recommended by our technicians to start production immediately and professionally. CODE: 27825711
Facilitates machining of long panels. Folding roller conveyor (500×750 mm) applicable to both sides of the machine. CODE: 27826902
Wooden crate packaging (2630x1560x1520 mm – 108 kg). Recommended for long-distance sea or road transport for maximum safety. CODE: 27845900
The machine can be configured to operate in countries with non-standard European voltage systems.
Allows machining on the 4th and 5th sides of the panel. CODE: 27845009
Save programming time by directly importing complete production projects created with Cabinet software. The machine can be configured to operate in countries with non-standard European voltage systems. CODE: 00002320
