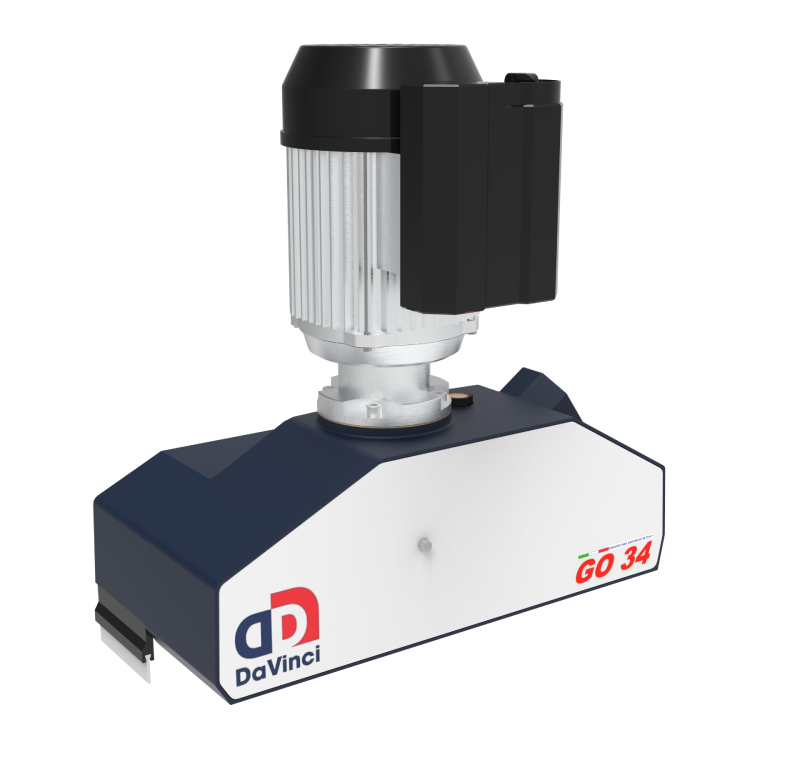

POWER FEEDER DAVINCI GO 34
Professional power-feeding unit with fixed speeds
Safety device for a safe and effective workpiece feeding on different types of traditional wood-working machines.
- Improves the safety: the operator does not have to put his hands close to the tool
- Improves the finish quality, thanks to the constant and even feed-rate
- Feed-rate can be easily selected to meet every specific working need
- Easily adjustable to suit different sizes of work piece
TECHNICAL FEATURES
FEATURES
Main features: N.4 fixed speeds (4-8-11-22 mt/min)
N.3 wheels (diam./ thickness 120×60 mm)
Motor power: 1 HP / 0,75 kW – 1.400/2.800 RPM
Cast aluminium housing, finished on high-precision machining centers
Steel-made gear cover
Eco-friendly, rust-resistant powder coating
Manufactured according to EC standards
STANDARD EQUIPMENT
Cast aluminium housing and steel-made gear cover
1 HP motor with 3mt cable
50-Shore “Feeder Grip” rubber wheels
Package: recyclable cardboard box
DATA SHEETS
| N. of speeds back and forth | 4 |
|---|---|
| Fixed speeds | 4 – 8 -11 – 22 mt/min |
| N. of wheels | 3 |
| Wheel diameter and thickness | 120 x 60 mm |
| Motor | 1 HP / 0,75 KW RPM 1400 /2800 |
| Wheel suspension | 20 mm |
| Distance between wheels | 133 mm – 153 mm |
| Distance between first and last wheel | 286 mm |
| Overall dimensions and net weight of the feeding unit | 474 x 220 x 490 mm – 30 Kg |
| Overall dimensions and net weight of the stand | 540 x 910 mm – 35 Kg |
| Package dimensions and gross weight (feeding unit) | 670 x 570 x 330 mm – 32 Kg |
| Package dimensions and gross weight (stand) | 800 x 330 x 330 mm – 37 Kg |

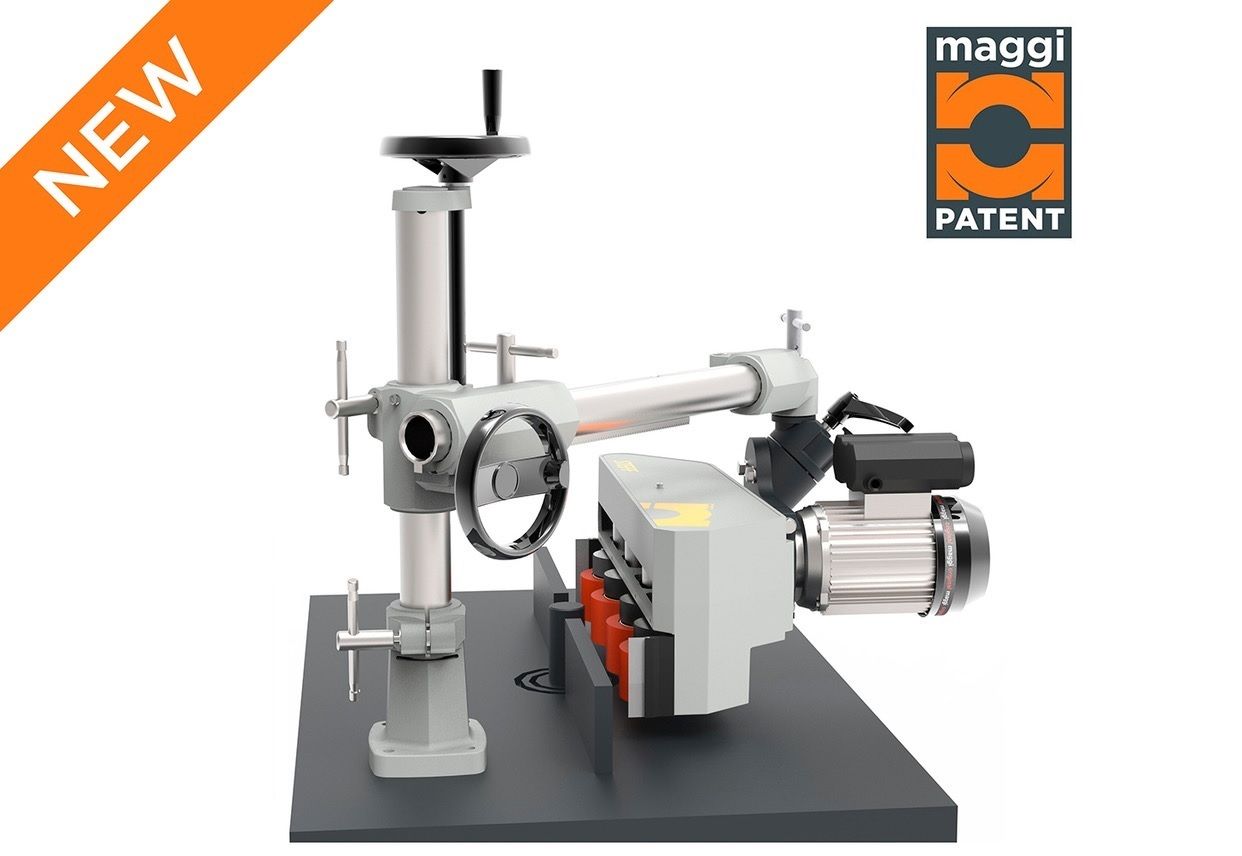

FAST TILTING
Thanks to the new EASY STAND ( optional ) You can tilt Your power-feeding unit in just one click : turn the handle to unlock, tilt the feeder, turn the handle again to lock
HIGH-QUALITY END PRODUCTS
3-wheel model: the ideal solution for the feeding of laths and medium or small-size workpieces. Thanks to the two infeed-wheels and the third outfeed one, the workpiece is constantly and evenly feeded althrough the working process, thus remarkably improving the quality of the end products.
QUICK SET-UP
The speed selector allows a quick set-up of the 1st and the 2nd feed- rate and the quick change of the feeding direction back and forth; while swapping the internal gears You obtain the 4 speeds.

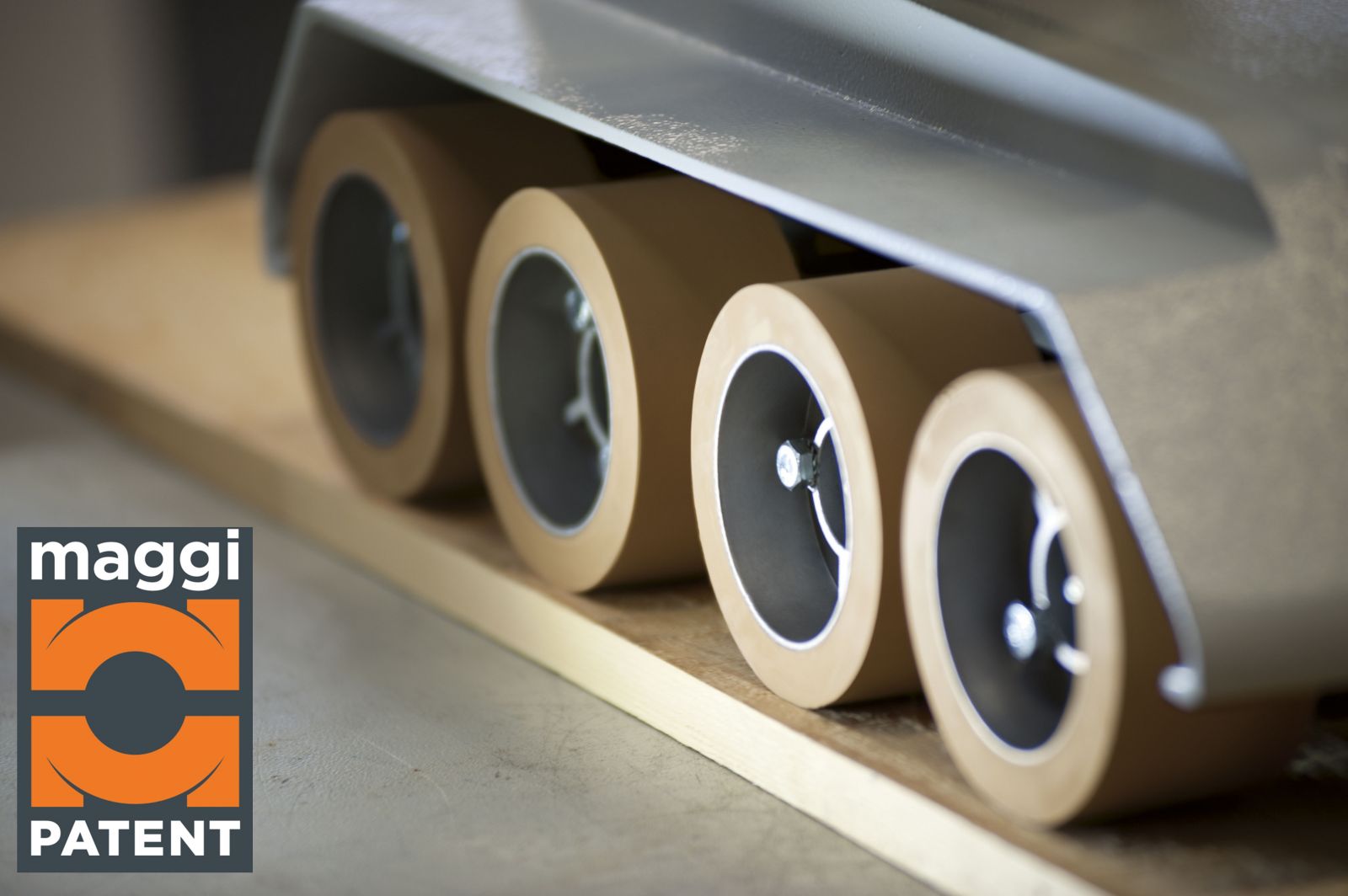

PERFECT GRIP
50-Shore wheels made of patented “Feeder Grip” rubber, providing the longest durability and the highest grip on the workingpiece.
SAFETY AS A CORE VALUE
A power-feeder improves the safety as it feeds the workpiece close to the tool, while operator’s hands are kept at a distance. Its effectiveness depends on specific design and manufacturing criteria. Maggi feeders are the only ones designed and manufactured in Italy and abiding by all EU safety norms.
HIGH ADAPTABILITY
The 20 mm wheel suspention, with calibrated spings, allows the constand and even feeding of workpieces with different thicknesses without any additional set-up.
