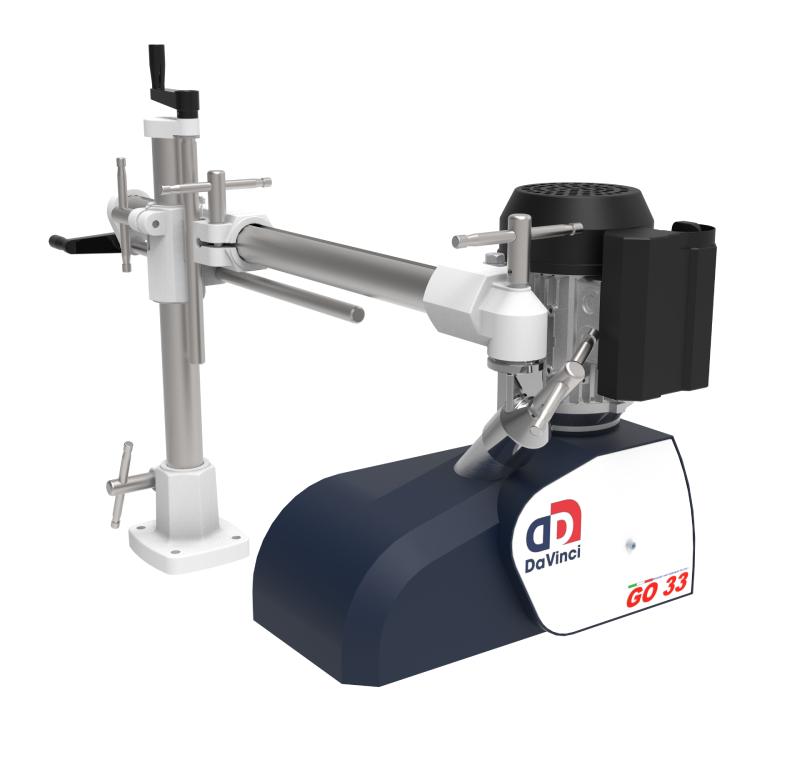

POWER FEEDER DAVINCI GO 33
Safety device for a safe and effective workpiece feeding on different types of traditional wood-working machines.
- Improves the safety: the operator does not have to put his hands close to the tool
- Improves the finish quality, thanks to the constant and even feed-rate
- Feed-rate can be easily selected to meet every specific working need
- Easily adjustable to suit different sizes of work piece
TECHNICAL FEATURES
FEATURES
Main features: N.8 fixed speeds (3,2 – 6,3 – 8,3 – 12,5 – 16,7 – 25 – 32 -63 mt/min)
N.3 wheels SHS Semi-Hub System with fixed aluminium core and rubber covering (diameter / thickness: 120×60 mm)
Motor power: 1 HP / 0,75 kW – 1.400/ 2800 RPM
Steel-made gear cover
Universal stand with safety restraint devices, SPS System
Eco-friendly, rust-resistant powder coating
Manufactured according to EC standards
STANDARD EQUIPMENT
Aluminium housing and steel-made gear cover
Stand with 1 horizontal tube ( 655 mm) and 1 vertical tube ( 525 mm) in ground steelm equipped with handwheels for height and horizontal adjustmen, 1 cast-iron base, and 4 aluminium licking pins for fastening and releasing the elements.
1 HP motor with 3mt cable
50-Shore SEMI-HUB “Feeder Grip” rubber wheels
Universal stand: horizontal-tube length 655mm, vertical-tube length 525 mm
Package: recyclable cardboard box
DATA SHEETS
| N. of speeds back and forth | 4 |
|---|---|
| Fixed speeds | 4 – 8 – 9 – 18 mt/min |
| N. of wheels | 3 |
| Wheel diameter and thickness | 80 x 28 mm |
| Motor | 0,24 HP / 0,18 KW RPM 1400 |
| Wheel suspension | 15 mm |
| Distance between wheels | 115 mm – 85.7 mm |
| Distance between first and last wheel | 200, 70 mm |
| Overall dimensions and net weight of the feeding unit | 303 x 152 x 330 mm – 10.3 Kg |
| Overall dimensions and net weight of the stand | 919 x 566 mm – 18 Kg |
| Package dimensions and gross weight (feeding unit) | 670 x 570 x 330 mm – 36 Kg |
| Package dimensions and gross weight (stand) | Imballato assieme al trascinatore |

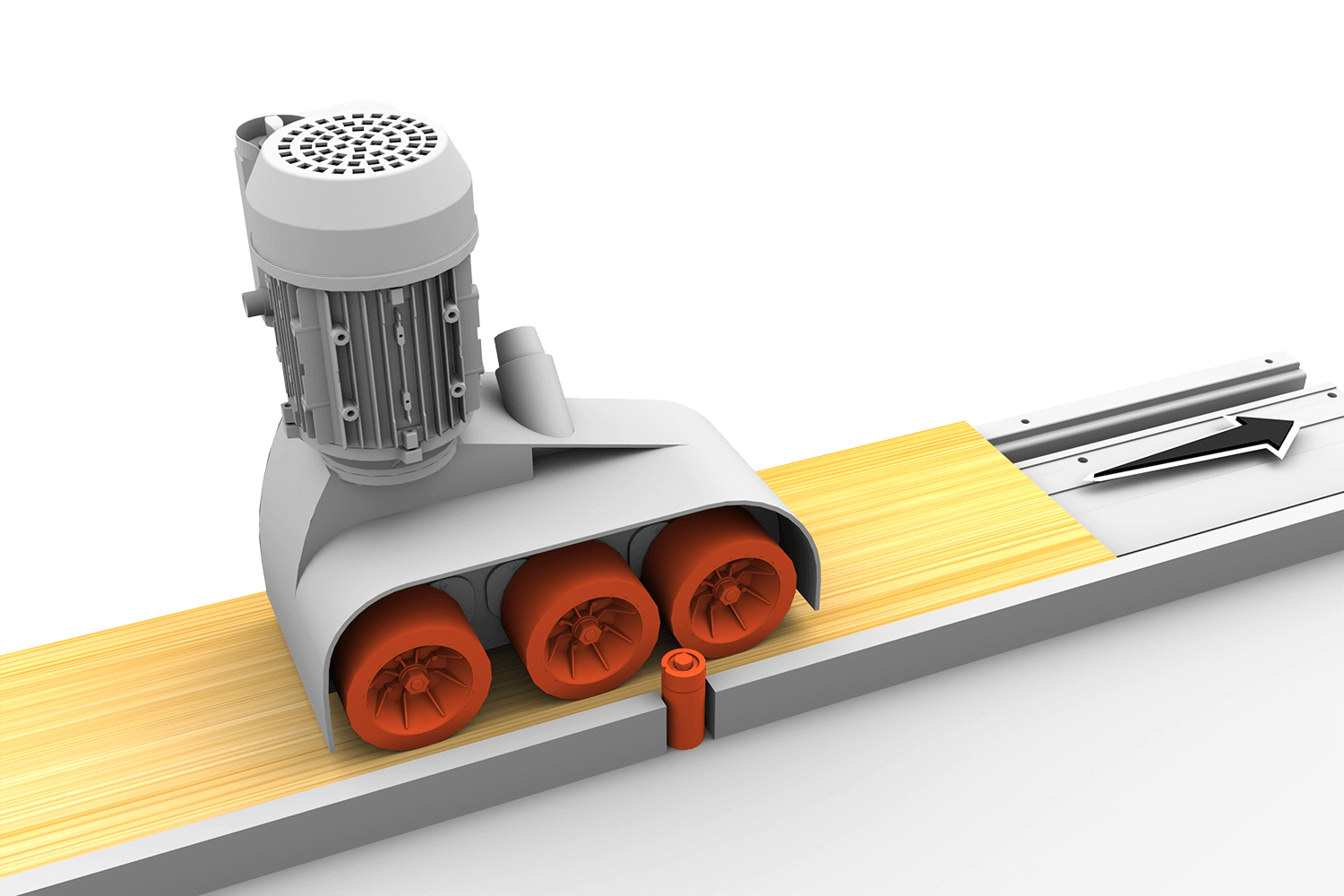

HIGH-QUALITY END PRODUCTS
3-wheel model: the ideal solution for the feeding of laths and medium or small-size workpieces. Thanks to the two infeed-wheels and the third outfeed one, the workpiece is constantly and evenly feeded althrough the working process, thus remarkably improving the quality of the end products.

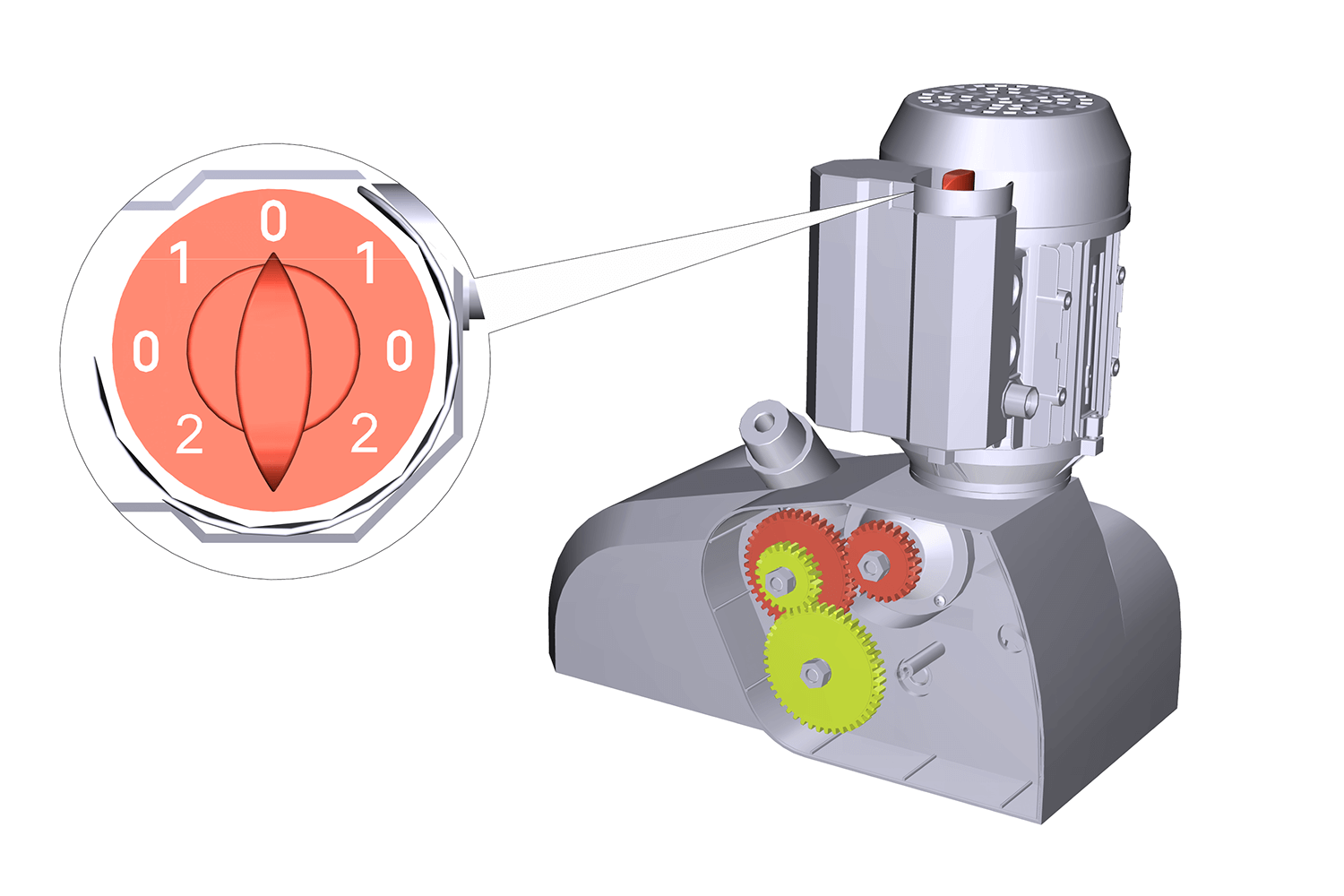

8 SPEED – “SMART” AND QUICK SET-UP
Swapping the internal gears you obtain the 8 speeds; moreover the speed selector, on the motor unit, allows a quick set-up of the 1st and the 2nd feeding rate and the quick change of the feeding direction back and forth.

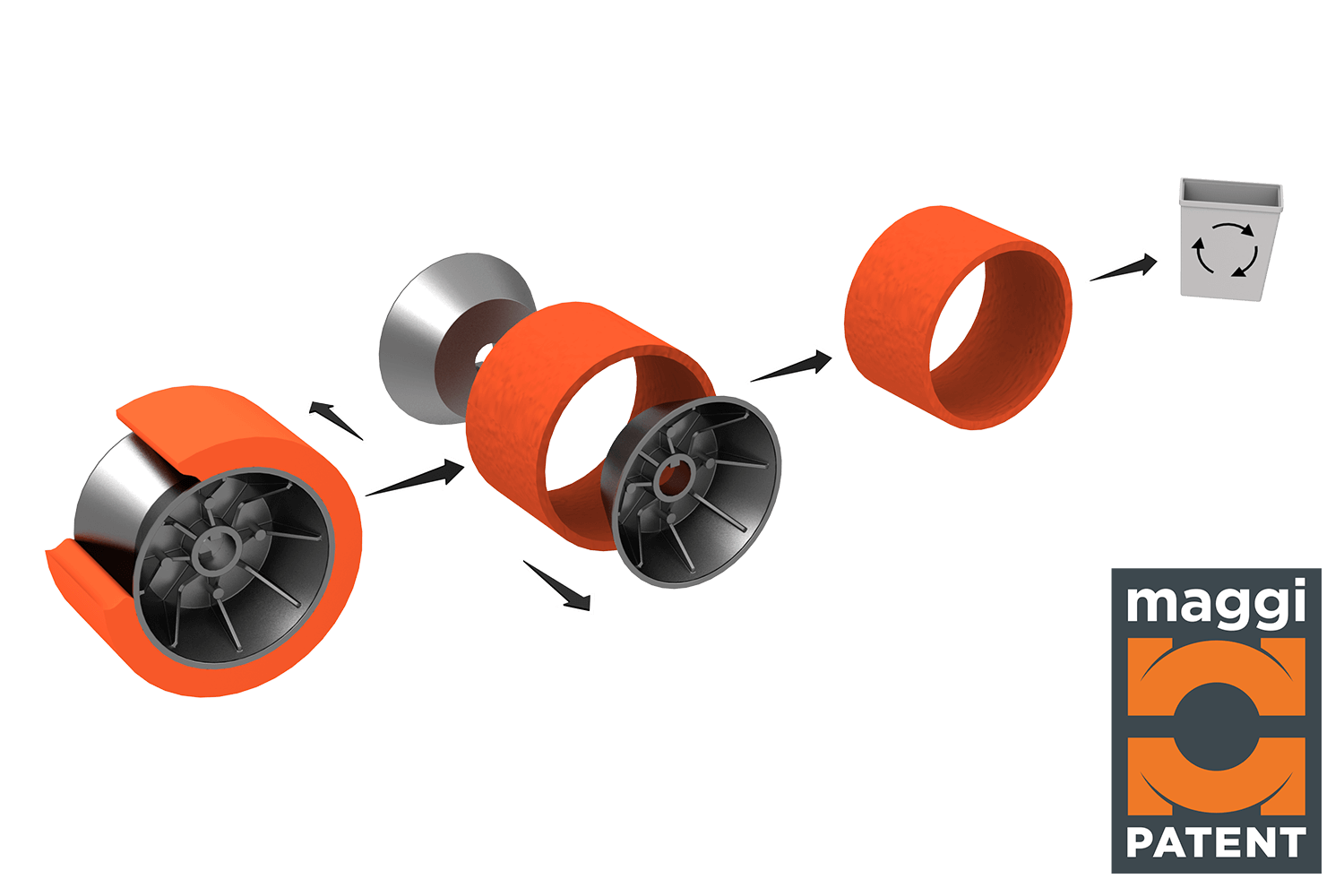

ECO-FRIENDLY WHEELS
50-shore wheels made of patented “Feeder Grip”rubber, providing the highest grip, while the “SHS” Semi-hub patent reduces the wear rate by 51%, and the waste material (replaceable rubber casings) for a lower impact on the environment.
SAFETY AS A CORE VALUE
A power-feeder improves the safety as it feeds the workpiece close to the tool, while operator’s hands are kept at a distance. Its effectiveness depends on specific design and manufacturing criteria. Maggi feeders are the only ones designed and manufactured in Italy and abiding by all EU safety norms.

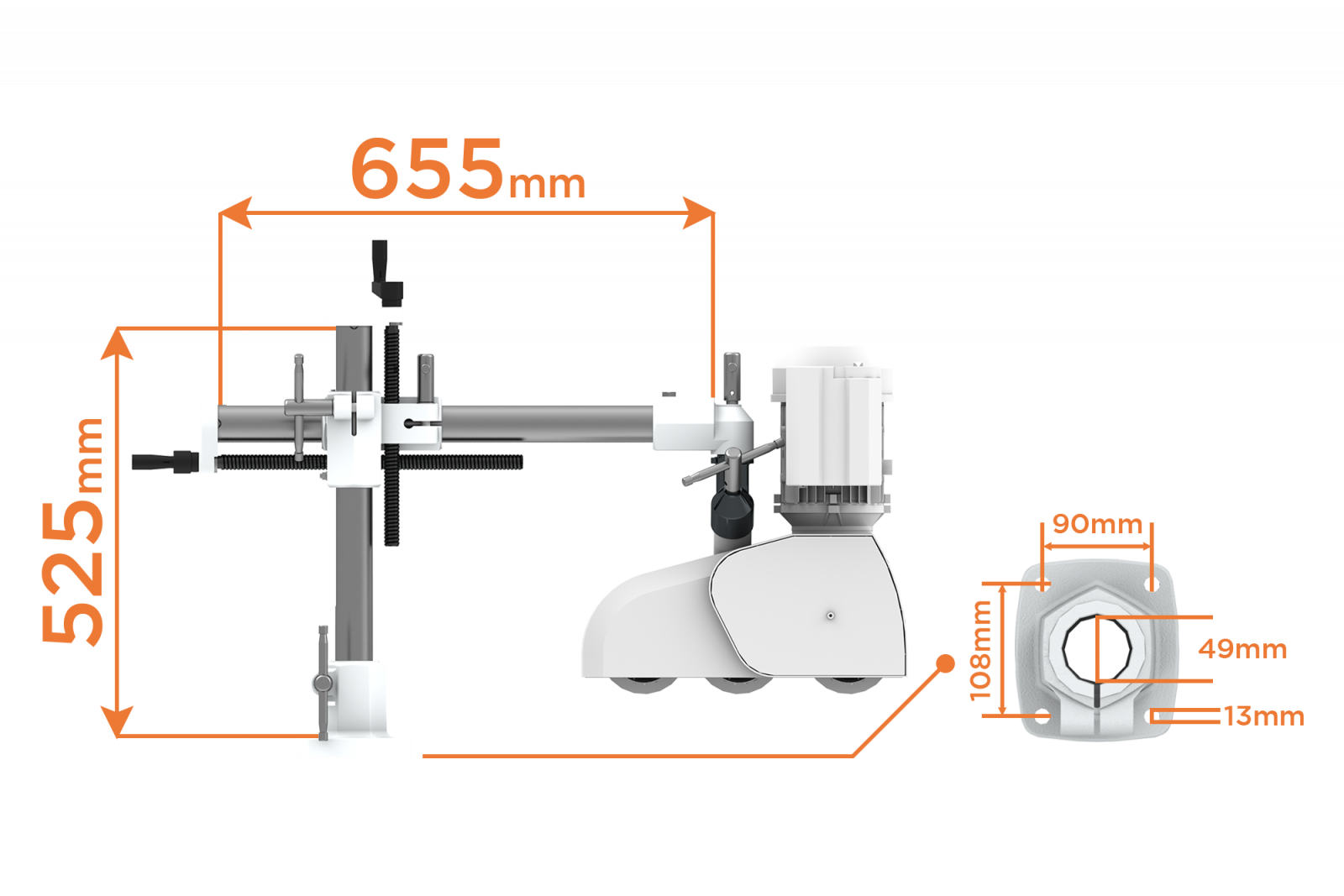

UNIVERSAL STAND
For easy positioning and adjusting of the feeding unit on the machine tool. It is easy to fix, stable and strong: foot, cross-shaped piece, pipe and joint are made of cast-iron and the two columns are made of rectified steel of considerable thickness. Handles made of steel and adjusting wheels allow a quick and accurate positioning.

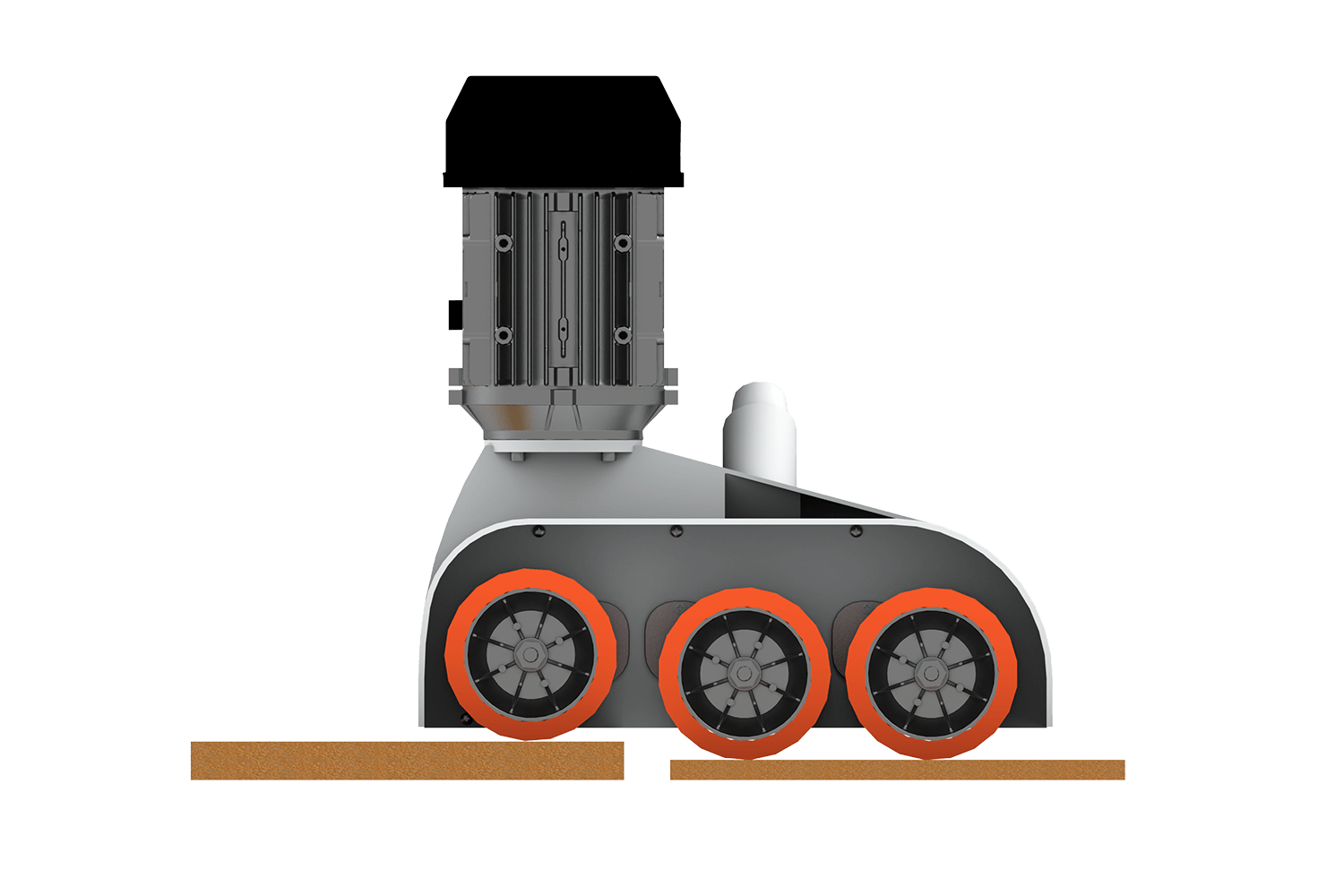

HIGH ADAPTABILITY
The 20 mm wheel suspention, with calibrated spings, allows the constand and even feeding of workpieces with different thicknesses without any additional set-up.
