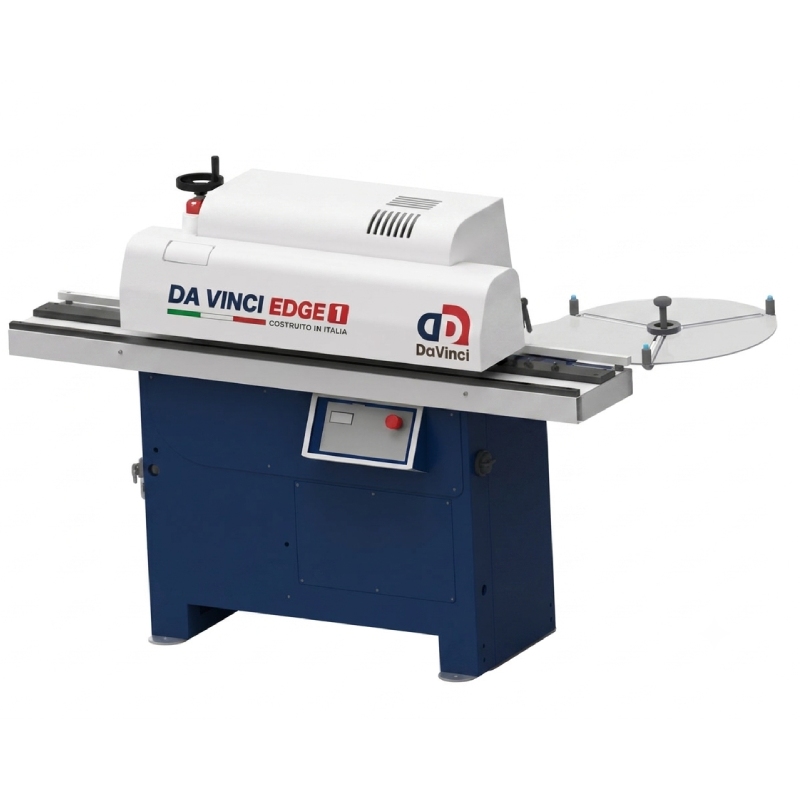

DAVINCI EDGE1
100% MADE IN ITALYPerfect for the needs of the small craftsman, looking to make a quality leap with a contained investment. For the production of kitchens and custom furniture. High precision, flexibility, and production capacity. Decades of experience, 100% Made in Italy, high standards
ROUTING, POCKETING, CORNER ROUNDING
Automatic routing delivers precise machining on flat surfaces and edges, ensuring a flawless, professional result.
Automatic corner rounding produces perfectly smooth radius edges on panels—ideal for manufacturing children’s room desks with speed and high precision.
With this feature, the machine executes drilling on five sides of the panel along with groove cutting for assembly applications, streamlining the processing of complex components.
Precise drilling for drawer construction places runner holes in optimal positions, guaranteeing perfect functionality of the slide system.
With this function, the machine drills hinge cup and mounting holes, ensuring flawless installation for cabinet doors and optimizing the assembly process.
Programmable boring machine with simple and intuitive software, 3 controlled axes X, Y, Z, with capability for grooving and executing basic routing operations (accessory), bottom-side machining, and panel feed-through. Panel movement via pneumatic clamp and automatic axis lubrication. Machine manufactured according to CE standards.
HEAD UNIT with independent spindles
7 Vertical spindles
1+1 Horizontal spindles (TH1) for front/rear drilling
High-precision manual panel aligner running on recirculating ball linear guides
Laser panel-end reader for flawless joint alignments
Remote technical assistance software
Powerful dust extraction and automatic head unit cleaning system with blowers
Air-cushion support table (unique in its category)
Automatic axis lubrication (unique in its category)
WORK MODES selectable by operator: single side or continuous cycle
Packaging: Wrapped on pallet (2630x1560x157 mm – 74 kg)
HARDWARE & SOFTWARE
– OSAI OPEN LIGHT CNC system for remote programming and connectivity
– PEGASUS PANEL design software – LIGHT VERSION
– Industrial PC, Win10 IoT Enterprise 64-bit LTSC, 128GB PROGRAM MEMORY on mSATA SSD, Intel Celeron J1900 CPU – 4 GB RAM
– 17” Industrial LED Monitor – Front protection IP65 – 4:3 Aspect Ratio – Resolution 1280×1024
17″ Industrial LED Monitor
Protection degree (on front) IP65
Format 4:3
Resolution 1280 x 1024
USB port and Ethernet port
SPECIFICATION SHEET
| Max. panel dimensions X-Y-Z mm | ∞ x 800 x 60 mm |
| Min. panel dimensions X-Y-Z mm | 300 x 75 x 8 mm |
| Max. panel weight | 70 kg |
| Max. axis speed X-Y (with and without panel) | 25 m/min – 70 m/min |
| Double horizontal spindles (X axis) | 2 pcs (TH1, TH2) |
| Double horizontal spindle (Y axis) | 2 pcs (TH3, TH4) |
| Vertical spindles (Z axis) | 12 pcs (7X-5Y) |
| Spindle center distance | 32 mm |
| Spindle rotation speed | 3200 RPM |
| Integrated fixed saw blade (X axis) | 1 pc |
| Saw blade diameter | 120 mm |
| Saw blade thickness | 4.3 mm |
| Saw blade rotation speed | 4000 RPM |
| Motor power (spindles and saw blade) | 2.2 kW |
| Manual-change electrospindle unit (power – collet type – tool coupling – RPM) | 3.6 kW, HSK 32, ER 25, 18,000 RPM |
| Manual-change electrospindle unit (power – tool coupling – RPM) | 3.6 kW, ER 25, 18,000 RPM |
| Manual-change electrospindle unit (power – tool coupling – RPM) | 4.5 kW, ER 32, 18,000 RPM |
| Total installed power (full optional) | 10 kVA |
| Dust extraction outlet diam. | 2 pcs x 120 mm, 1 pc x 80 mm |
| Air pressure | 6 bar |
| Air consumption | Q = 750 m³/h |
| Overall dimensions and net weight | 2660 x 1560 x 1450 mm – 1725 kg |
| Packed machine dimensions (pallet) and gross weight | 2650 x 1570 x 1680 mm – 1810 kg |
USER-FRIENDLY SOFTWARE
Intuitive icon-based interface, step-by-step data entry, and program simulation, compliant with Industry 4.0 requirements. Creation and management of work lists, quick selection and execution of programs. Machining macros. Parametric programming. Office Creator for off-line programming. Direct import of common 3D CAD files (accessory) formats (.stp, .iges, .obj, .skp) and 2D files (.dxf, .dwg). Direct import of full projects created with cabinet software thanks to a simple decoding program (accessory). Free software updates for top performance at all times!
Configurable equipment according to needs. Max. working width 1200 mm across the entire panel. Payload capacity up to 70 kg for kitchen countertops and custom furniture. Machining with return to operator or exit
Zero setup time. 5 times faster than a single-head boring machine and the fastest in its category: 25 m/min axis speed with panel loaded (70 m/min without). All operations in a single work cycle. Horizontal layout facilitates panel loading. Fast program import with
Large, sturdy worktables provide a solid support base during the work cycle; Laser panel-end reader for drillings
Air-cushion tables make panel handling smooth and gentle on delicate surfaces.
As precise as day one thanks to the heavy-duty steel frame designed to withstand heavy stresses. Pneumatic clamp with 70 kg payload capacity. Dual hold-down pressers. Mechanical unit
Speeds up the machining process during vertical line drilling. CODE: 27845012- EVO
Speeds up the machining process during vertical line drilling. CODE: 27845011- EVO
Additional vertical spindle Left
Speeds up the machining process during vertical line drilling
CODE: 27845011- EVO
Reduces drilling time on the 4th and 5th sides by 50%. CODE: 27845010
For executing back-panel insertion grooves. Grooving saw unit X AXIS including tool diam. 120 mm, thickness 4.3 mm, D 20 / Z 24. CODE: 27845013
Facilitates machining of long panels. Independent roller conveyor 500×1500 mm (roller table only) 562×1540 mm (overall dimensions), height-adjustable from 770 to 1,175 mm, max. load 45 kg/m – applicable to both sides of the machine. CODE: 27304100
For fast, optimal panel feeding into the machine, significantly boosting productivity in batch processing. CODE: 27850604
For basic routing operations: light pocketing, material removal, execution of simple geometric shapes and lettering. The special HSK taper speeds up tool replacement and setup. Electrospindle unit (router) with manual change – 3.6 kW – HSK 32 collet holder, ER 25 coupling, diam. 16 mm – 18,000 RPM.
For basic routing operations: light pocketing, material removal, execution of simple geometric shapes and lettering. Electrospindle unit (router) with manual change – 3.6 kW – ER 25 coupling, diam. 16 mm – 18,000 RPM.
For basic routing operations: light pocketing, material removal, execution of simple geometric shapes and lettering. Electrospindle unit (router) with manual change – 4.5 kW – ER 32 coupling, diam. 20 mm – 18,000 RPM. CODE: 27845755
The barcode scanner reads the code applied to the panel and immediately loads the corresponding machine program. CODE: 00002202
To create machining programs directly from your office or any PC and transfer them to the machine via USB drive or network cable. CODE: 00002189
Software specifications used to create a postprocessor, allowing the machine to import programs generated by third-party CAD/CAM software (Postprocessor development to be provided by user’s software vendor)
Save programming time by directly importing 3D furniture models into the machine as individual files. 3D file import formats (.stl, .stp, .iges, .obj, .skp). CODE: 000002263
Save programming time with tailored macros for complex or recurring operations. CODE: EVO-macro-su-RICHIESTA
Selection of essential tooling recommended by our technicians to start production immediately and professionally. CODE: 27825711
Facilitates machining of long panels. Folding roller conveyor (500×750 mm) applicable to both sides of the machine. CODE: 27826902
Wooden crate packaging (2630x1560x1520 mm – 108 kg). Recommended for long-distance sea or road transport for maximum safety. CODE: 27845900
The machine can be configured to operate in countries with non-standard European voltage systems.
Allows machining on the 4th and 5th sides of the panel. CODE: 27845009
Save programming time by directly importing full project files created with Cabinet software. CODE: 00002320
